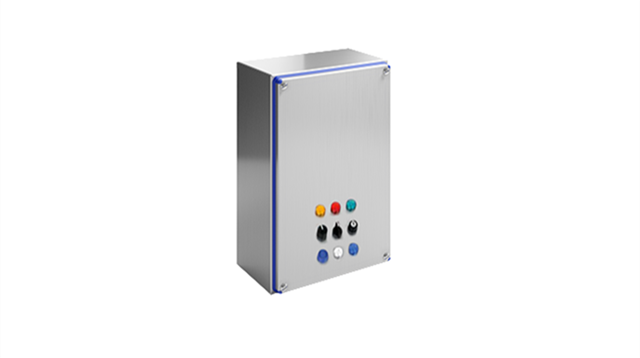

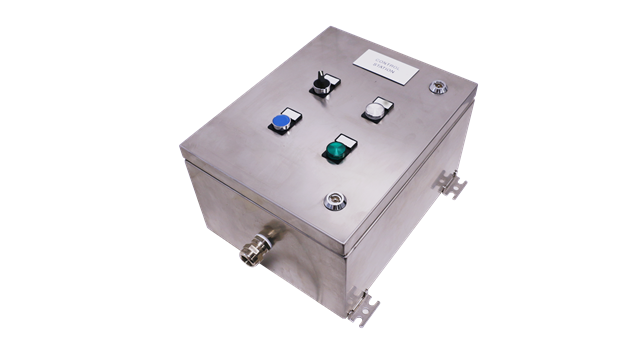

The control and signaling units series CE2K-.. .. ..-CS-SSX are able to operate in an ambient temperature from -60°C to +85°C and consist of enclosures having degree of protection IP66. The lids are equipped with a silicone gasket suitable for an ambient temperature from -60°C to +85°C and for a max. surface temperature from T85°C to T100°C.
The control and signalling units series CE2K-.. .. ..-CS-SSX can be equipped with certified components like:
• ammeter/voltmeter;
• switch module (for push-button, selector switch, control switch, etc.) and relevant actuator;
• safety switch
• signalling lamp or Led; illuminated button
• fuse;
• potentiometer.
Temperature class depends on the temperature class of the “hottest” component(s): if at least one component having temperature class T5 or T4 is mounted, the temperature class shall be T5 or T4. The maximum permissible ambient temperature of the certified operators shall duly be considered. For area of drilling on the lid must be considered the lid dimensions less 15%.
Enclosure material: SS316L
Certificates no.:
- ATEX: CEC 15 ATEX 211
- INMETRO: available upon request
* Dimensions and weights mentioned in the datasheet are approximate and subject to change without notice *
