The CE2K-.. .. ..-CS-GRP range includes 25 sizes of enclosures manufactured in GRP glass reinforced polyester with 4 mm thickness, that can be threaded. Polyester is a valid alternative to aluminum, stainless steel or cast iron; it has excellent mechanical strength and a long life expectancy.
The terminal boxes series CE2K-.. .. ..-CS-GRP are able to operate in an ambient temperature from -60°C to +85°C and consist of enclosures having degree of protection IP66 (with red or white colour silicone gasket placed on internal part of the lid) or IP66/67 (as option).

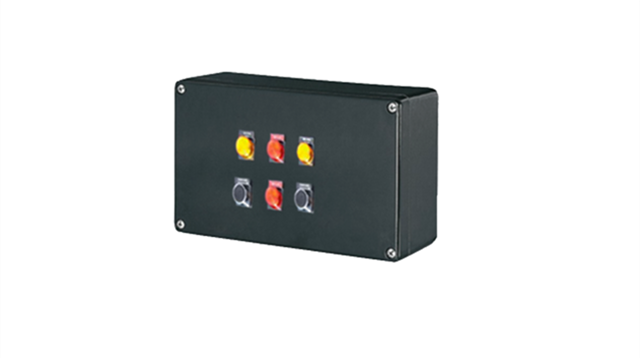

The control and signalling units series CE2K-.. .. ..-CS-GRP can be equipped with certified components like:
• ammeter/voltmeter;
• switch module (for push-button, selector switch, control switch, etc.) and relevant actuator;
• safety switch
• signalling lamp or Led; illuminated button
• fuse;
• potentiometer.
Temperature class depends on the temperature class of the “hottest” component(s): if at least one component having temperature class T5 or T4 is mounted, the temperature class shall be T5 or T4. The maximum permissible ambient temperature of the certified operators shall duly be considered. For area of drilling on the lid must be considered the lid dimensions less 15%.
Enclosure material: GRP
Certificates no.:
- ATEX: CEC 15 ATEX 211
- INMETRO: available upon request
* Dimensions and weights mentioned in the datasheet are approximate and subject to change without notice *
