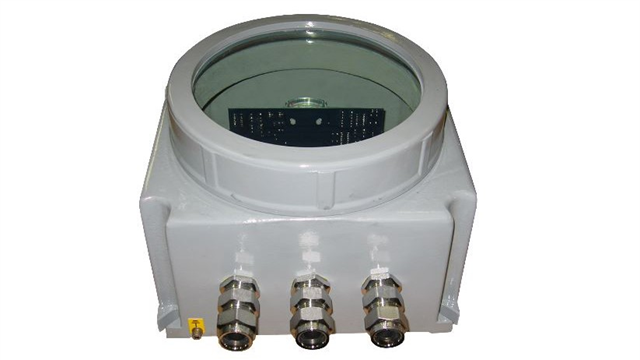

IRIS500 MA Ex amplifier is suitable to be use with IRIS 500 UV Ex flame scanner.
The IRIS 500 MA amplifier is composed of:
M= Motherboard, code M502
A= Analogboard, code A503
The flame signal can be an analog 0 - 20mA on analogboard.
- Housing Ex d IIC
- 100 % fail safe and self checking
- Power supply: 115VAC or 230VAC
