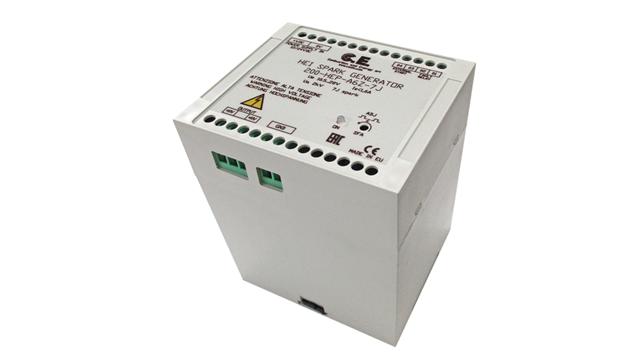

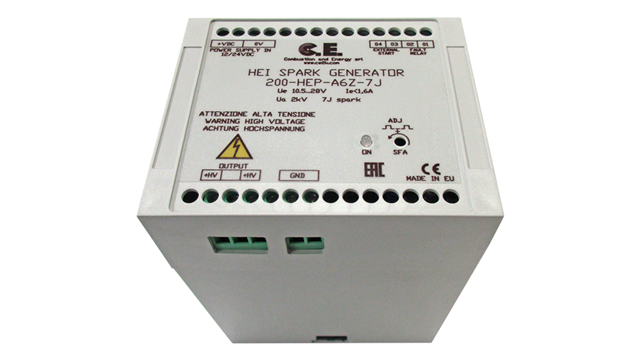

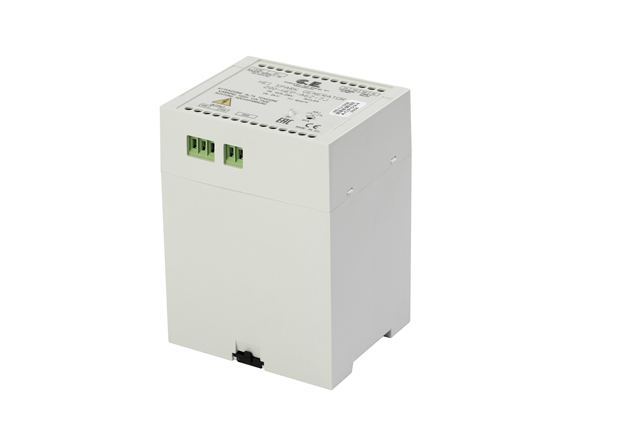

The 200-HEP-A6Z 7J HEI flare ignition module mountable on DIN connection with a power discharge of 7J. A booster function has been implemented (four 7J sparks are generated in one second).
Thanks to its power supply requirement (12VDC) it could be use also with a solar panel to ignite system without external power source. This module is microprocessor controlled and it is used also for diagnostic function. It is possible to have special customization programs and sparking sequence. It could be use for ignite flares, stacks, boilers...
On the front of the module there is a screw that allow to set the discharge frequency: from less than 1 spark each 0,6s till 1 spark each 8s.
200-HEP-A6Z HEI flare ignition could be coupled with a dedicate MDR power supply that allow to have a power supply from 100 to 240VAC.
